Regelbare voedingen | |
|
Hieronder zien we een aantal schema's met de bekende spanningsregelaars 7805 en de LM 317. De eerste is met een vaste uitgangsspanning
(b.v. 5 volt) en de tweede met een regelbare uitgangsspanning (b.v. 2..35 volt). De tekst is alleen in de engelse taal,
maar met een beetje puzzelen zal het wel lukken de tekst te ontcijferen.
|
||
|
Vaste uitgangsspanning

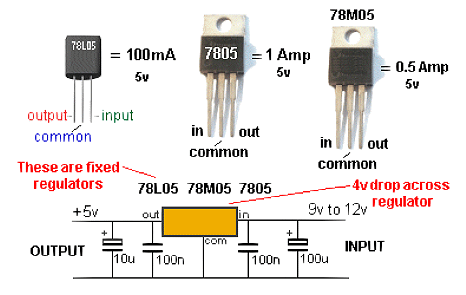

A simple power supply can be made with a component called a "3-pin regulator or 3-terminal regulator" It will provide a very low ripple output (about 4mV to 10mV provided electrolytics are on the input and output. The diagram above shows how to connect a regulator to create a power supply. The 7805 regulators can handle 100mA, 500mA and 1 amp, and produce an output of 5v, as shown. These regulators are called linear regulators and drop about 4v across them - minimum. If the current flow is 1 amp, 4watts of heat must be dissipated via a large heatsink. If the output is 5v and input 12v, 7volts will be dropped across the regulator and 7watts must be dissipated. |
 |
|
 |
Regelbare uitgangsspanning

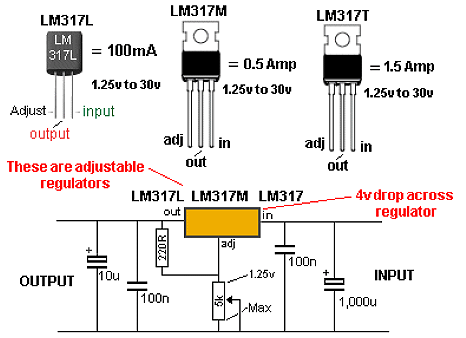

The LM317 regulators are adjustable and produce an output from 1.25 to about 35v. The LM317T regulator will deliver up to 1.5amp. |
Regelbaar met een 7805

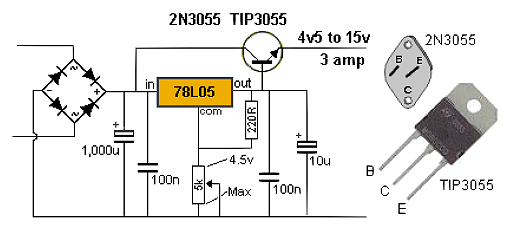

The output current of all 3-terminal regulators can be increased by including a pass transistor. This transistor simply allows the current to flow through the collector-emitter leads. The output voltage is maintained by the 3-terminal regulator but the current flows through the "pass transistor." This transistor is a power transistor and must be adequately heatsinked. Normally a 2N3055 or TIP3055 is used for this application as it will handle up to 10 amps and creates a 10 amp power supply. The regulator can be 78L05 as all the current is delivered by the pass transistor. |

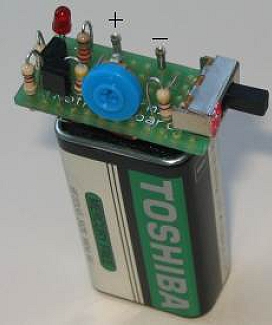

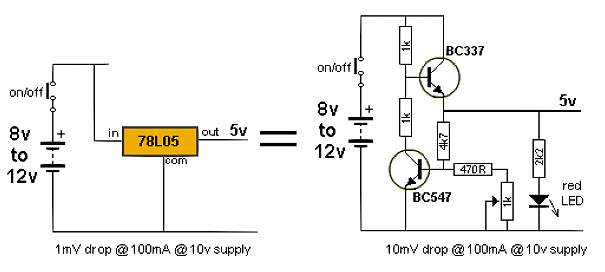

5 volt uit een batterij van 9 volt
